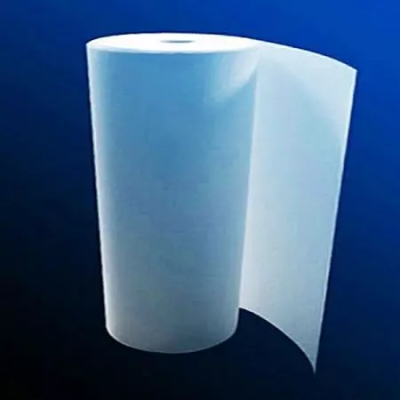

Fiberglass Chopped Strand Mat
LFJ provides premium fiberglass chopped strand mats (CSM) engineered for the automotive industry. Featuring rapid resin wet-out and excellent conformability for complex body panels, it maximizes weight reduction and impact strength for lightweight auto composites.
Product Overview
As the automotive industry rapidly shifts towards EVs and stricter fuel economy standards, achieving lightweight construction without sacrificing structural integrity is the ultimate challenge. Standard composite base materials often suffer from slow resin wet-out, uneven thickness, or poor flexibility, which ruins production cycle times and causes defects in complex parts. LFJ’s Fiberglass Chopped Strand Mat (CSM) is explicitly engineered to solve these manufacturing bottlenecks.
Manufactured with evenly distributed chopped strands and advanced binders, our CSM delivers exceptionally fast wet-out and superior drapability. It allows Tier 1 automotive composite manufacturers to flawlessly mold complex aerodynamic curves—such as car roof, underbody shields. LFJ’s CSM drastically reduces vehicle weight while providing isotropic impact resistance to meet stringent automotive safety standards.
Key Features
- Rapid Resin Wet-Out
- Excellent Conformability
- Isotropic Impact Strength
Main Applications
- Atuomotive headliner
- Car Interior structural components
Technical Specifications
Fiber Type | E OR ECR |
Fiber Filament | 9~13µm |
Binder Type | Powder or Emulsion |
Agent | Silane |
Area Weight | 100 g/m² - 900 g/m² |
Width | 1040mm |
Length | Depend on area weight |
Color | White |
Mostiture Content | ≤0.5% |
Packaging | Carton and Pallet |
Specified specifications on request
Series of Products
- Custom Slit Rolls & Precision Pre-Cut Mats
FAQ
Can the mat easily conform to complex 3D headliner designs, such as those with panoramic sunroofs?
Yes. Modern headliners have deep contours for overhead consoles and sharp cutouts for panoramic sunroofs. Standard mats can wrinkle or tear when pressed into these shapes. LFJ’s specially formulated CSM offers superior flexibility and drapability during the thermoforming or compression molding process. It conforms flawlessly to tight radiuses and deep draws without tearing or "spring-back," significantly reducing defect rates on your assembly line.
